About 4V SERIES 5-2 WAY DOUBLE COIL SOLENOID VALVE

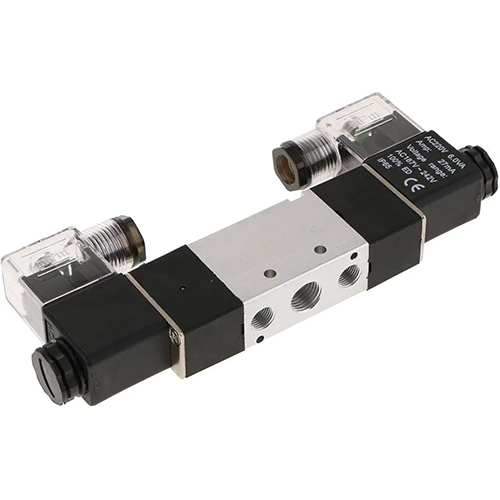

THINK TECH 4V Series 5/2 Way Double Coil Solenoid Valve

Technical Data 4V Series 5/2 Way Double Coil Solenoid Valve

• Model: 4V Series

• Type: 5/2 Way Double Coil Solenoid Valve

• Port Size: 1/8", 1/4", 3/8", 1/2" BSP/NPT (as per model)

• Medium: Compressed Air (filtered, lubricated / non-lubricated)

• Action: Double coil (bi-stable, latching position type)

• Pressure Range: 0.15 0.8 MPa (1.5 8 bar)

• Max. Pressure: 1.0 MPa (10 bar)

• Operating Voltage: AC: 24V, 110V, 220V / DC: 12V, 24V

• Power Consumption:

  • AC: 4.5 VA

  • DC: 3 W

• Insulation Class: F Class

• Protection: IP65 with DIN connector

• Response Time: 0.05 sec

• Lubrication: Not required (if used, use ISO VG32 oil)

• Temperature Range: 5C 60C

• Body Material: Aluminum alloy

• Seals: NBR / Viton (optional)

• Mounting: Inline or manifold mounting

• Feature: Double coil ensures stable switching, valve holds last position even after power loss
