3 WAY 4 WAY BALL VALVE BODY CI CS WCB SS304 SS316

Name: 3 WAY 4 WAY BALL VALVE BODY CI CS WCB SS304 SS316
Brand: METAL TECH ENTERPRISE
Price: 500 INR
Availability: InStock

Price 500 INR/ Piece

Get a Price/Quote

MOQ : 15 Pieces

3 WAY 4 WAY BALL VALVE BODY CI CS WCB SS304 SS316 Specification

Structure
Control

Material
Stainless Steel

Usage
Industrial

Size
Standard

Media
Water

Port Size
1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3" 4" 5" 6"

Color
Blue

Finish
Polished

3 WAY 4 WAY BALL VALVE BODY CI CS WCB SS304 SS316 Trade Information

Minimum Order Quantity
15 Pieces

Supply Ability
50 Pieces Per Year

About 3 WAY 4 WAY BALL VALVE BODY CI CS WCB SS304 SS316

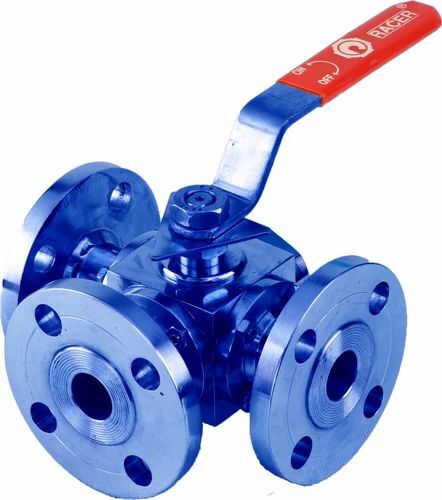

THINK TECH 3-Way and 4-Way Ball Valves with different body materials:

Technical Data: 3-Way & 4-Way Ball Valve

Parameter	Specification / Details
Type	3-Way / 4-Way Ball Valve
Operation	Manual / Gear Operated / Pneumatic / Electric (optional)
Body Materials	CI (Cast Iron), CS (Carbon Steel), WCB, SS304, SS316
Ball Material	Stainless Steel / Chrome Plated Steel / SS304 / SS316
Seat Material	PTFE / RPTFE / PEEK / Metal Seat
End Connections	Flanged, Threaded (BSP/NPT), Welded
Pressure Rating	Class 150 / 300 / 600 (depends on material and size)
Size Range	DN15 DN200 (1/2" 8")
Temperature Range	-20C to 200C (seal & material dependent)
Flow Type	L-Port (3-Way) / T-Port (3-Way) / 4-Way Standard Ports
Applications	Fluid & gas control in industrial pipelines, chemical, oil & gas, water treatment, HVAC systems

Keywords for SEO / Cataloging

3-way ball valve, 4-way ball valve, CI ball valve, Cast Iron ball valve, CS ball valve, Carbon Steel ball valve, WCB ball valve, SS304 ball valve, SS316 ball valve, manual ball valve, gear-operated ball valve, pneumatic ball valve, electric ball valve, flanged ball valve, threaded ball valve, industrial pipeline valve, high-pressure ball valve.
